Home >> Product Center >>Auxiliary machines >> PVC Raw Material Mixer Plastic Blender Machine Hot Mixing Machine and Cold Mixing Equipment High Speed Mixer Unit Color Mixer Machine
Product Detail

PVC Raw Material Mixer Plastic Blender Machine Hot Mixing Machine and Cold Mixing Equipment High Speed Mixer Unit Color Mixer Machine

Collect
  • 商品说明

Anxing machinery professional Plastic PVC mixing machinery supplier with 20 years of experience in plastic machinery


Machine testing before delivery for Plastic PVC WPC heating and cooling PVC mixer mixing machine

Product Description

Plastic PVC WPC heating and cooling PVC mixer mixing machine are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning. By high temperature and water cooling to mixture pvc and some other materials, this machine is necessary one in plastic extrusion and injection parts. Additionally, we have other plastic mixers, such as color mixer, and big capacity automatic mixing production line.

Features of Plastic PVC WPC heating and cooling PVC mixer mixing machine:
- mixer barrel adopts 5mm stainless steel, bottom adopts 6mm stainless steel, it's stronger and durable. some factory use only 3mm stainless steel, the cost is cheaper, but it's not durable, the mixing barrel will wear off after some time.
- the frame of mixer made by 12mm channel steel which are stronger and more durable. some factory only use 10mm channel steel
- the bottom support steel plate adopts 20mm steel sheet, most factory only use 14mm thick steel.
- the mixer exhausing filter adopts very good air filter used for car, the air exhausting effect is much more better than cloth bag filter.
- the cooling mixer's cooling belt is elaborately designed which can fast cool down the plastic materials.
- hot mixer blades are well desgined which can save mixing time by 2mintues for one batch.
- adopts Gemany oil seal, make sure no oil leakge

Product Parameters

Main parameter for Plastic PVC WPC heating and cooling PVC mixer mixing machine

Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
Total capacity(L)
100/200
200/500
300/600
500/1000
Mixing capacity(kg/hour)
165
325
500
750
Motor power
(KW)
14/22/7.5
30/42/11
40/50/15
47/67/15
Paddle Speed(r/min)
650/130/180
475/950/130
475/950/130
430/860/60
Mixing time(min/batch)
8-10

Main parameter for Plastic PVC WPC heating and cooling PVC mixer mixing machine
Model
SRL-Z800/1600
SRL-W800/2500
SRL-W1000/3000
SRL-W1300/4500
Total capacity(L)
800/1600
800/2500
1000/3000
1300/4500
Mixing capacity(kg/hour)
1400
1400
1900
2500
Motor power(KW)
60/90/18.5
80/110/30
110/160/37
132/200/45
Paddle Speed(r/min)
370/740/50
370/7409/50
325/650/50
250/500/50
Our Advantages

1.World famous brand inverter--ABB, stable and reliable.

2.World famous brand contactor--Schneider, reliable performance.

3.World famous brand temperature controller--Omron, precision temperature control, reliable and durable.

4.Automatically low power consumption: minimum total production line consumption is 25kw/hour.

5. Economical price, which is suitable for large scale investment.


FAQ
1. who are we?
We are based in Jiangsu, China,sell to Domestic Market(30.00%),Southeast Asia(20.00%),North America(10.00%),South America(10.00%),Central America(10.00%),Africa(10.00%),South Asia(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PVC Edge Band Production Line, PVC Ceiling And Wall Panel Production Line, PVC Profile Extrusion Production Line, WPC Fluted Wall Panel Production Line, PVC Edge Band Printing Machine

4. why should you buy from us not from other suppliers?
20 years experience on PVC ceiling wall panel machines,PVC profile machines, PVC plastic extruder. more than 2000 machine were installed at around 50% of Chinese cities. and, we have 2 running PVC marble sheet machines at our own factory.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian

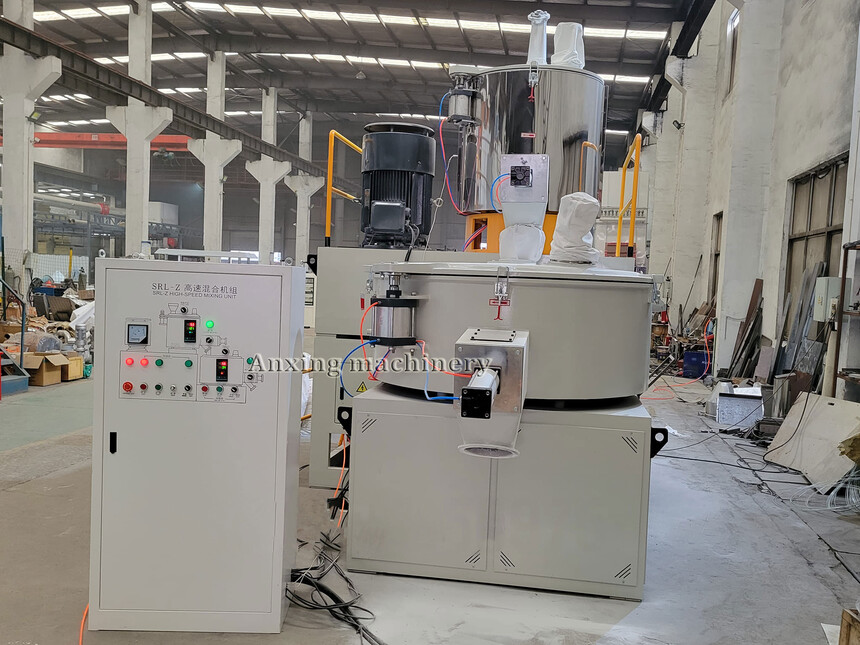

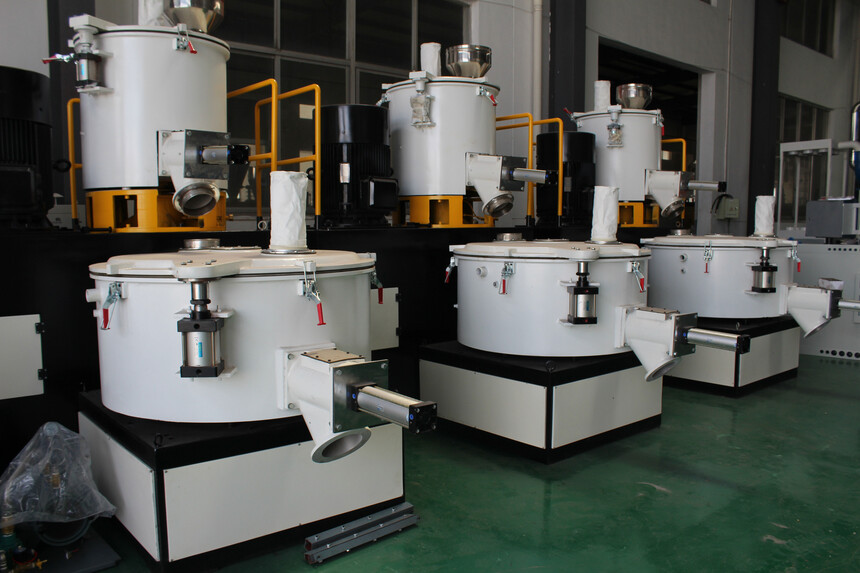

Anxing machinery Manufacturing center for Plastic PVC powder mixing machine

Super well organized electric cabinet for Plastic PVC powder mixing machine

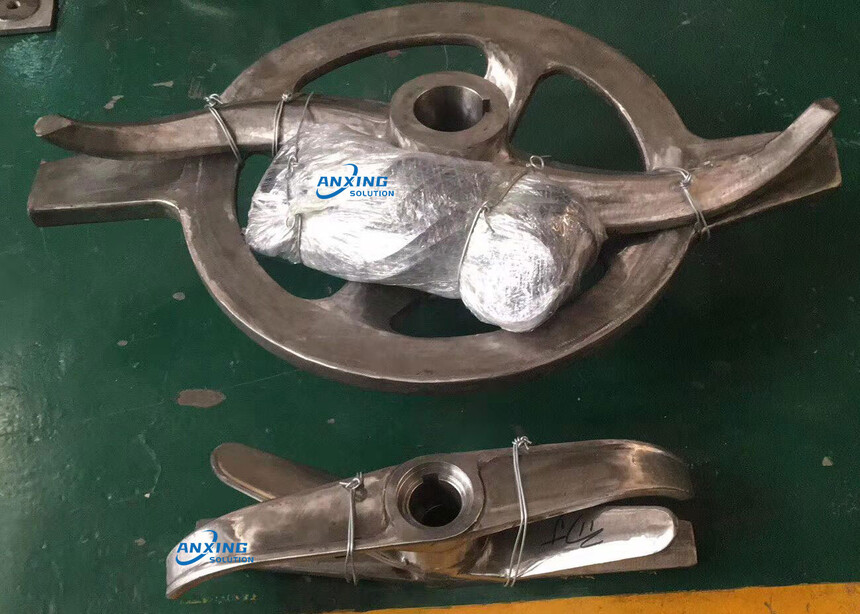

201SS mixing paddles for PVC mixing machine


If you have any inquiry about plastic mixing project, welcome to contact us
